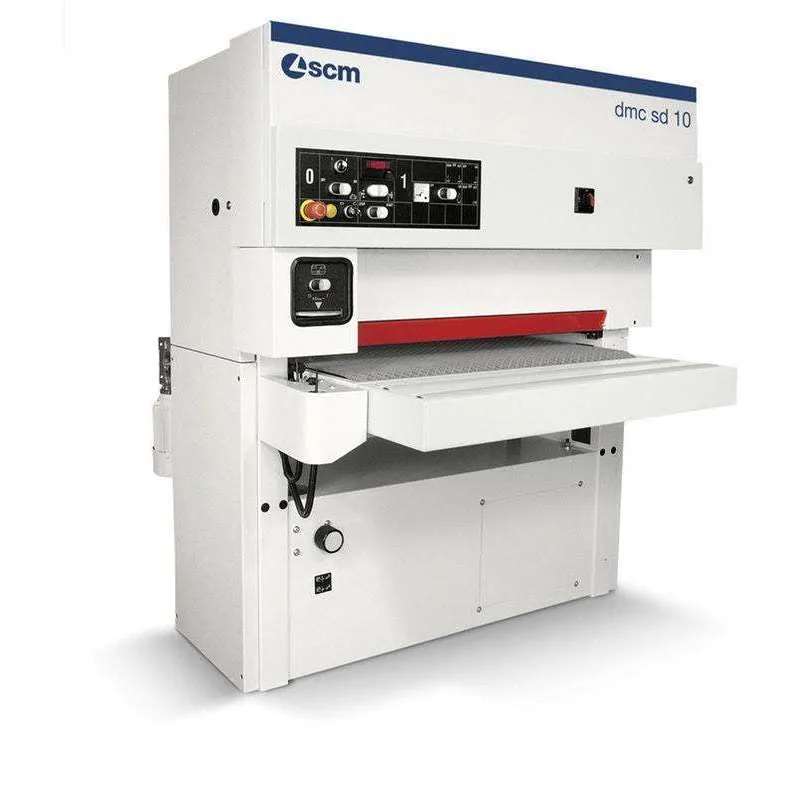

SCM DMC SD 10 CS 95 - 37" WIDE BELT SANDER, SINGLE COMBINATION HEAD

Standard Features

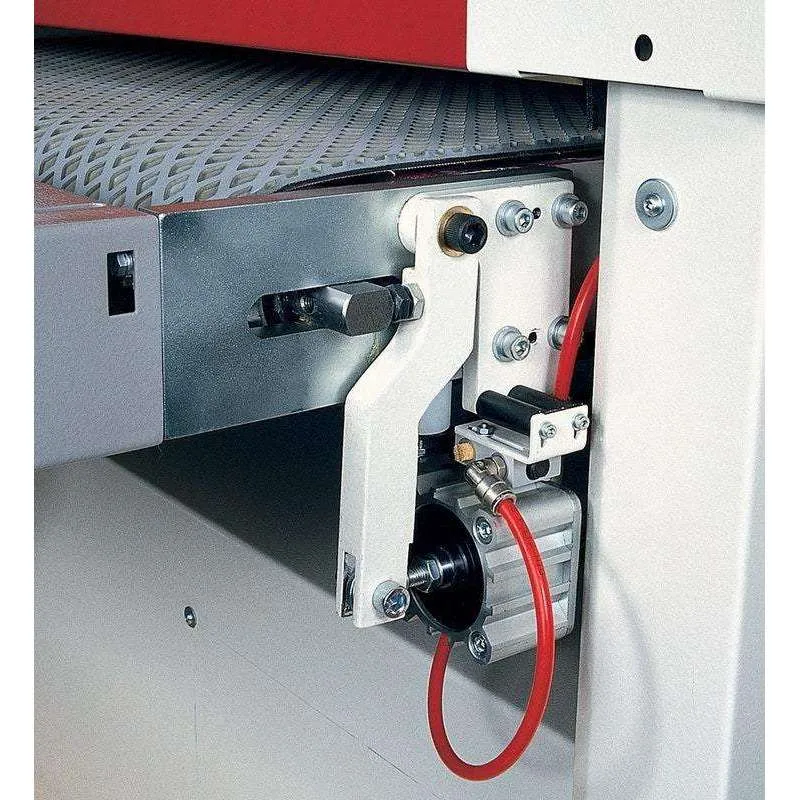

• Rubber coated pressing rollers before and after sanding unit
• Additional flexible hold-down plate before sanding unit.
• .7 HP 2 speed feed unit. Feed speeds set at 15 and 30 feet per minute

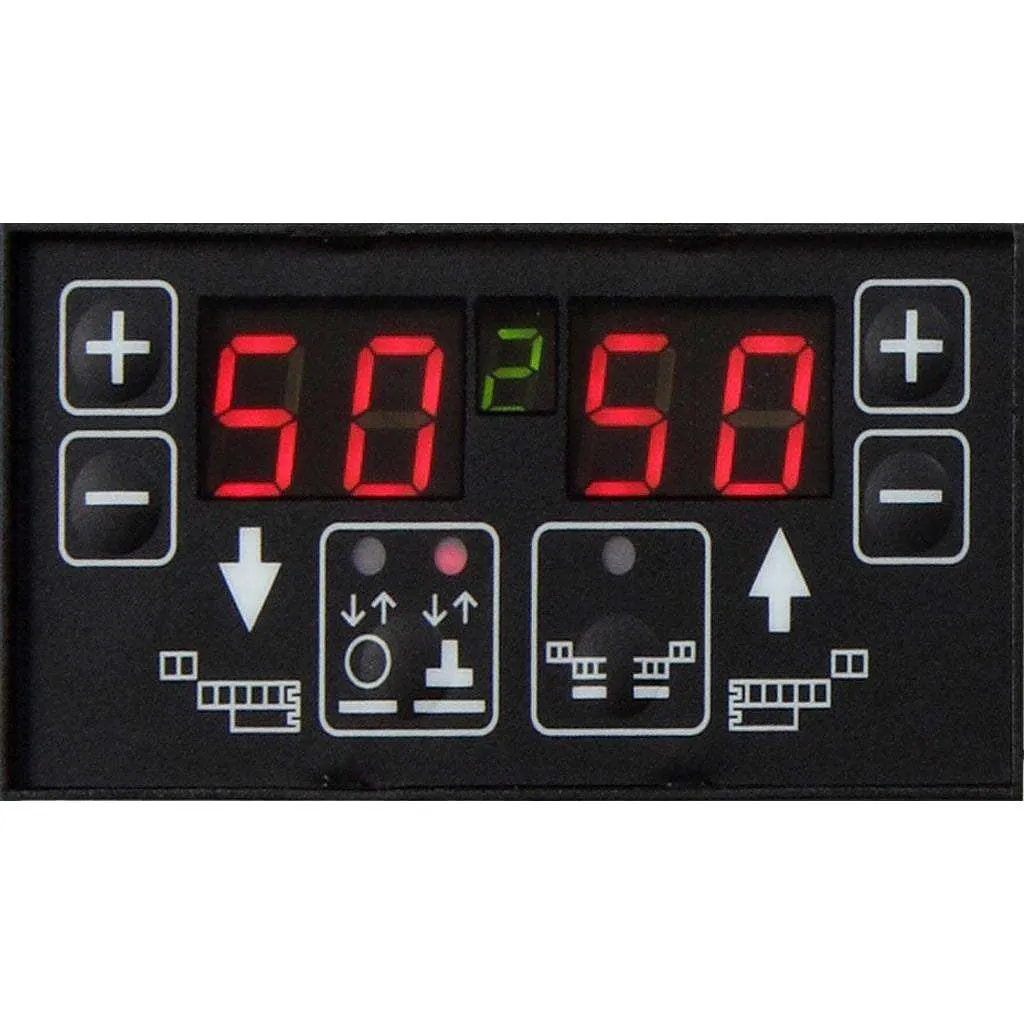

• Electronic digital thickness readout of work table position
• Electronic positioning of the work table
• Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability
• Accurate and reliable electronic tracking of abrasive belt

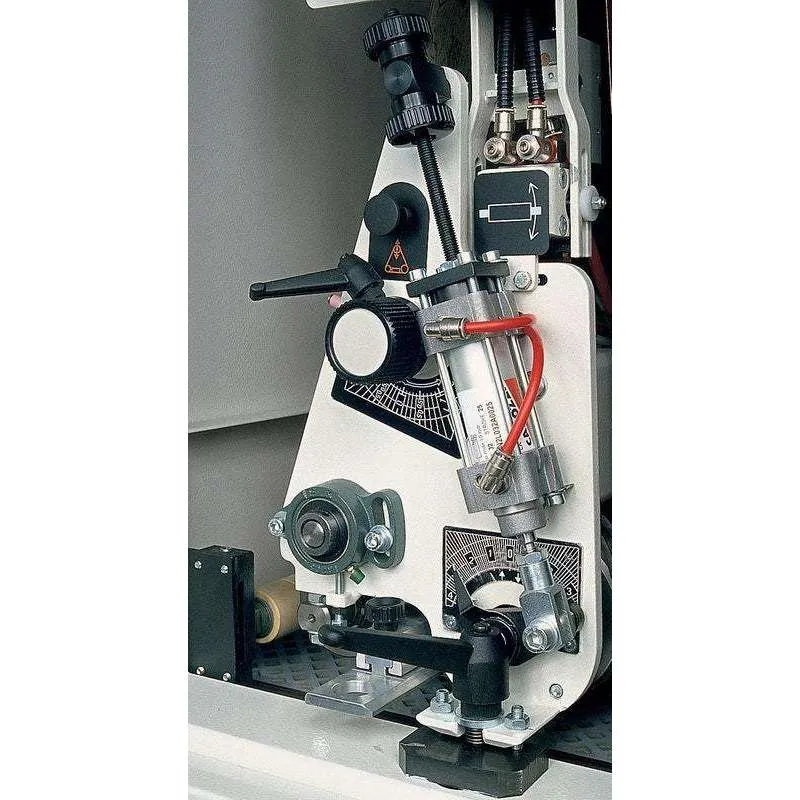

• Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt
• Front and rear emergency stop buttons
• Automatic emergency stop of machine for:
• sanding belt breaking, tensioning, over tracking
• opening of the access door to the operating groups
• absence of compressed air
• overload on main motors
• Amperage meter for main motors allows maximum utilization of available horsepower
• Main disconnect switch with the ability to be locked out by padlock
• 50 shore, negative profile (waffle style) rubber feed mat
• Infeed and Outfeed tables with 2 rollers each
• Automatic table thickness device

DMC sd 10 CS 95

Comp Code - R000801

37" Sander

Combi head

Length 56"

Width 45"

Height 71"

Weight - 1526 Lbs.

Belt sander perfect for small woodworking companies.
It satisfies all solid wood calibrating and sanding requirements.

Advantages

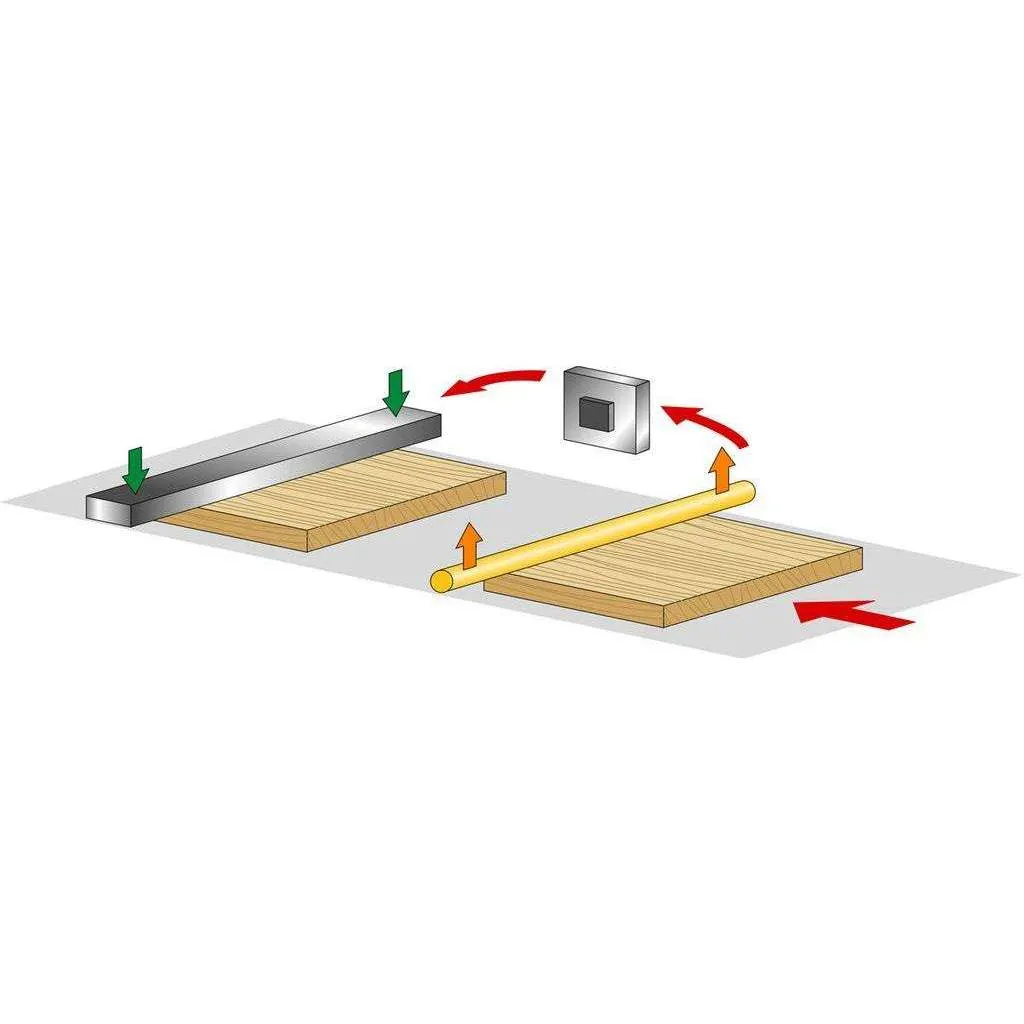

Automatic table positioning: practicality and precision together. The automatic detection of the work piece thickness allows precise machining at all times and without the risk of operator error. The decimal setting of this system also allows setting the work depth independently of the material.

Diamond-shaped belt: no slipping of the work pieces. The special geometry of the diamond-shaped profile of the transport belt provides the best traction surface for the work piece and with the increased support area also ensures maximum stability.

Compact to provide more floor space. The very much reduced size of all Sandya wide belt sanders simplifies their positioning in the workshop, while maintaining the performance and production potential of the sanders.

Technical Data
